Power Cord Part Number: 81131X1.5M

Detachable power cord set with "SCHUKO" CEE 7-7 (EU1-16P) plug and straight IEC 60320 (320) C-13 connector. 1.5 meters long. Cordage is black H05VV-F3Gx1.0 mm with international conductor color code. Rated 10 ampere 250 volt . 2 pole 3 wire grounding. Available with shielded cordage, IEC 60320 (320) C-15 120C connector and / or custom length.

All Countries where this part is used:

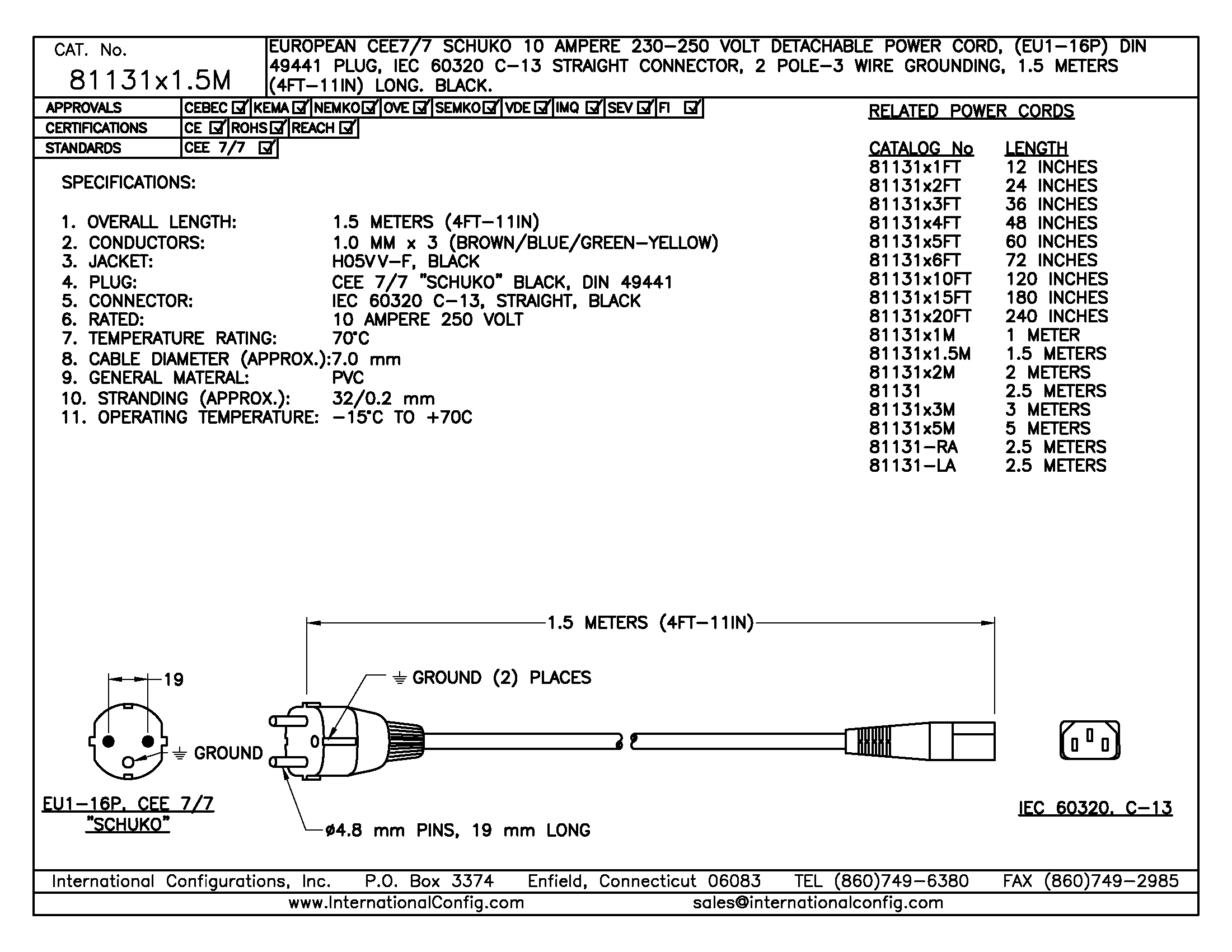

~ Click diagram below to view, print or download a high-resolution PDF print. ~

EU1-16P, Schuko, CEE 7/7, Type F Plug
16 Amp 250 Volt, 2 Pole 3 Wire Grounding

General Specification Data

Plug StandardCEE 7/7, CEE 7/16 (Non-Polarized)
Connector StandardsIEC 60320 (320) C-13, C-19, C-5, C-7, C-15, Unterminated
Cordage StandardsH05VV-F3G, H03VV-F3G, H03VV-H2, H05VV-H2, H05VV-F2, CENELEC HD-21 (HAR)
Conductor Size / Rating0.75 mm @ 6 Ampere, 1.0 mm @ 10 Ampere, 1.5mm @ 16 Ampere
MaterialPVC, Jacket Color Black, Temperature 70C
Conductor Color CodeBrown, Blue, Green/Yellow (3 wire); Brown, Blue (2 wire)
Jacket O.D. (Approx.)6.4 mm = 3 x 0.75 mm, 7.2 mm = 3 x 1.0mm, 8.3 mm = 3 x 1.5 mm
Substances ComplianceREACH, RoHS Compliant

Additional Notes: Black standard color.
White and gray available.
Custom lengths and shielded cords available.
Various terminals, custom stripping, hanked cords available.
IEC 60320 C-15 120C type connector available on some models.
